A Deep Dive into Coarse and Fine Powders: How Particle Size Distribution (PSD) Impacts Nylon Coating Quality 01
In the practical application of nylon (PA11, PA12) powder electrostatic spraying and fluidized bed dip coating, coating defects such as pinholes, orange peel, uneven thickness, and edge thinning are frequently attributed to baking temperatures or substrate pretreatment. However, deep technical analysis of industrial processing scenarios reveals that many persistent quality fluctuations stem directly from the Particle Size Distribution (PSD) of the feedstock powder. Particle size is far from a simple singular metric; the distinct physical behaviors of coarse and fine particles during fluidization, electrostatic transport, and thermal melting directly dictate the ultimate coating performance in corrosion resistance, mechanical strength, and surface topometry.
During electrostatic spraying and fluidized bed processes, powder particles encounter fundamentally different physical forces and heat transfer dynamics. When particles move from the spray gun toward the workpiece under an electric field, aerodynamic drag interacts continuously with electrostatic force. Fine particles (typically defined as those under 20 microns) possess minimal mass and extremely high specific surface area, making them highly susceptible to airflow turbulence and agglomeration. This leads to spitting at the gun nozzle. Once deposited, these agglomerates trap air that struggles to escape during subsequent melt-curing, resulting in microscopic pinholes or cratering defects. Conversely, coarse particles (exceeding 80 or 100 microns) exhibit superior fluidic transfer but lack sufficient electrostatic adhesion, causing premature detachment before entering the oven or sluggish leveling during melting, which manifests as severe orange peel patterns.

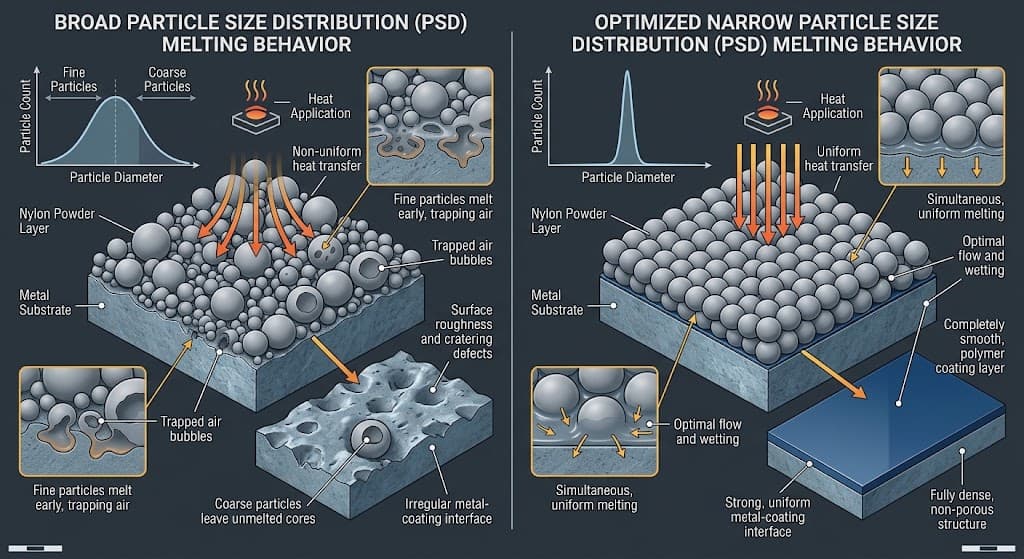

Fluidized bed coating demands precise suspension control of the powder matrix. An ideal fluidization state relies on uniform gas permeability through particle voids. An excessive ratio of fine powder induces channeling or localized boiling inside the bed. When preheated metal parts are immersed, local regions absorb un-leveled powder agglomerates, causing localized thickness spikes or internal thermal stresses. Conversely, a high concentration of coarse particles causes bed bottom settlement, producing a characteristic gradient where bottom sections are over-coated while top edges are left thin. Consequently, the relative span of the distribution (Span value) provides a much more reliable indicator of line compatibility than the median particle size (D50) alone. Broad distribution powders offer cost advantages, but the melting rate differential between coarse and fine fraction leaves hidden interfacial voids inside the protective layer.
FAQ
1. What is your MOQ?
For sample orders, we recommend a minimum of 5kg as the MOQ to ensure the validity of the test.
For bulk order, we suggest the minimum quantity is 1000kg, the higher the quantity, the lower the shipping cost.
2、About Sample.
Samples within 5kg are free of charge, shipping cost is not included.
3、About Quality.
We are ISO9001 certified and have perfect testing equipments to ensure that every batch of products are tested and qualified before delivery.
4、About delivery time.
Usually samples can be shipped within 3-5 days, and bulk orders can be shipped within 7-10 days.
5、About transaction and payment method.
We support TT, LC payment method, EXW, FOB, CIF, CNF trading method.
